Anson Mark 12

 Home Page | Return to Post WW2 Allied Aircraft

Fig 1. Instrument Panel	Fig 2. Cockpit - Left hand side	Fig 3. Cockpit - right hand side.

Number References

Anson mark XII

Fig 1. Instrument Panel.

1. Brakes pressure gauge.
2. Identification lights switch-box.
3. Vacuum system change-over cock.
4. Vacuum gauge.
5. Recognition lights switch..
6. RPM indicators.
7. Press-to-transmit button.
8. Undercarriage warning light.
9. Instrument flying panel.
10. Oil dilution switch.
11. Booster-coil switch.
12. Feathering buttons.
13. Booster-coil switch.
15. DF indicator.
16. Boost Gauges.
17. Oil pressure gauges.
18. Oil temperature gauges.
19. Landing lamp dipping control.
20. Fuel contents gauges.
21. Fuel contents gauge selector switch.
22. Voltmeter.
23. Generator warning lights.
24. Windscreen wiper master switch.
25. Windscreen wiper control.
26. Priming pumps and cocks.
27. Windscreen de-icing pump.
28. Flap pressure indicator.

29. Air temperature gauge.
30. Slow running cut-out control.
31. Air temperature gauge switch.
32. Undercarriage indicator.
33. Mixture Lever.
34. Friction damper.
35. Throttle levers.
36. Elevator trimming tab control.
37. Brakes lever.
38. RPM control lever.

39. Landing lamp switch.

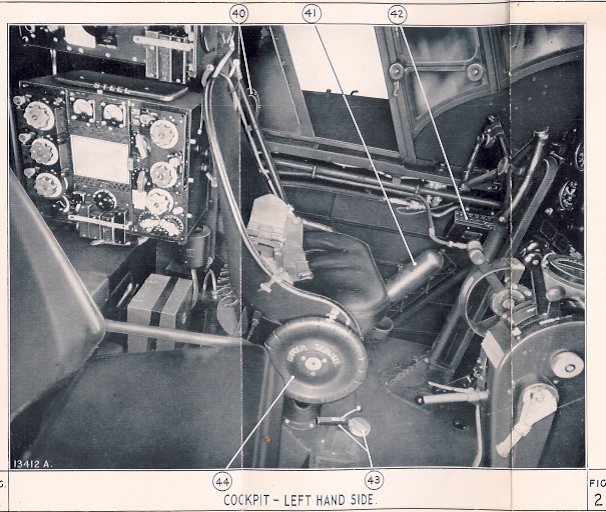

Figure 2. Cockpit left hand side.

40. Undercarriage Warning horn.
41. Fire-extinguisher.
42. T.R. 1196

43. Undercarriage control and safety bolt.
44. Rudder trimming tab control

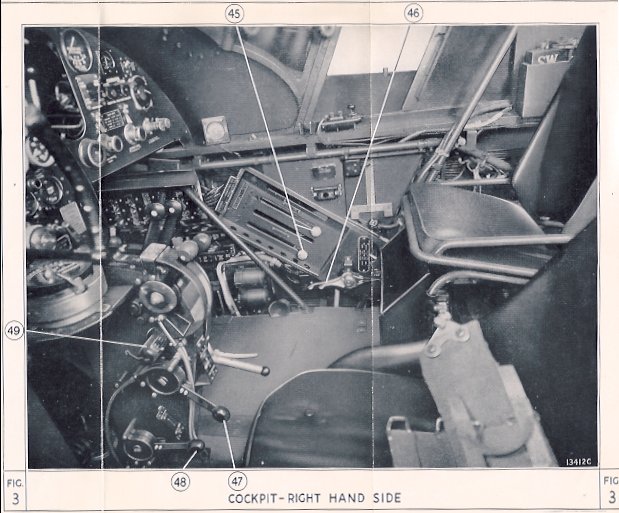

Figure 3. Cockpit right hand side.

45. Fuel Cock controls
46. Cabin and cockpit heating controls.
47. Air cleaner controls.
48. Air Intake heat control.
49. Elevator Trimming tab position indicator.
